OEM/ODM Factory China 2 Pole 16-95mm2 Ce&RoHS Certification Copper to Aluminum Connectors 245A 750V Aluminum Connectors

Short Description:

Typical Application: LV & MV conductor connections for Cable terminations & Joints

Mechanical connectors are designed for use in LV and MV applications.

The Connectors consist of a tin-plated body, shear-head bolts and inserts for small conductor sizes. Made of special aluminium alloy, these contact bolts are shear-head bolts with hexagon heads.

The bolts are treated with a lubricating wax. Both versions of contact bolts removable/ irremovable are available.

The body is made of a high-tensile, tin-plated aluminium alloy. The internal surface of the conductor holes is grooved. Lugs are suitable for outdoor and indoor applications and are available with different palm hole sizes.

Mechanical connectors for Straight & transition Joints are available as unblocked & blocked type. Connectors are chamfered at the edges.


Product Detail

Product Tags

We know that we only thrive if we could guarantee our combined selling price competiveness and good quality advantageous at the same time for OEM/ODM Factory China 2 Pole 16-95mm2 Ce&RoHS Certification Copper to Aluminum Connectors 245A 750V Aluminum Connectors, We welcome new and aged prospects from all walks of lifetime to call us for future business enterprise associations and mutual achievements.
We know that we only thrive if we could guarantee our combined selling price competiveness and good quality advantageous at the same time for China Terminal Block, Terminal Block Connector, What You Have to have Is What We Pursue.We’ve been sure our solutions will bring you first class quality.And now sincerely hope to promote partner friendship with you from all over the world. Let’s joint hands to cooperate with mutual benefits!
Overview

Torque terminals are specially designed to handle the connection between wires and equipment.
The unique shear bolt mechanism provides a consistent and reliable stopping point. Compared with traditional crimping hooks, it is super fast and super efficient, and ensures a consistent predetermined shear moment and compression force.
The torsion terminal is made of tin-plated aluminum alloy and has an inner groove-shaped wall surface.
The notable feature is that it can save labor and enhance the electrical and mechanical performance.
▪ Material: tinned aluminum alloy
▪ Working temperature: -55℃ to155℃ -67 ℉ to 311 ℉
▪ Standard: GB/T 2314 IEC 61238-1

Features and advantages

▪ Wide range of applications
▪ Compact design
▪ It can be used with almost all types of conductors and materials
▪ Constant torque shearing head nut guarantees good electrical contact performance
▪ It can be easily installed with a standard socket wrench
▪ Pre-engineered design for perfect installation on medium voltage cables up to 42kV
▪ Good over-current and anti-short-term current impact capability

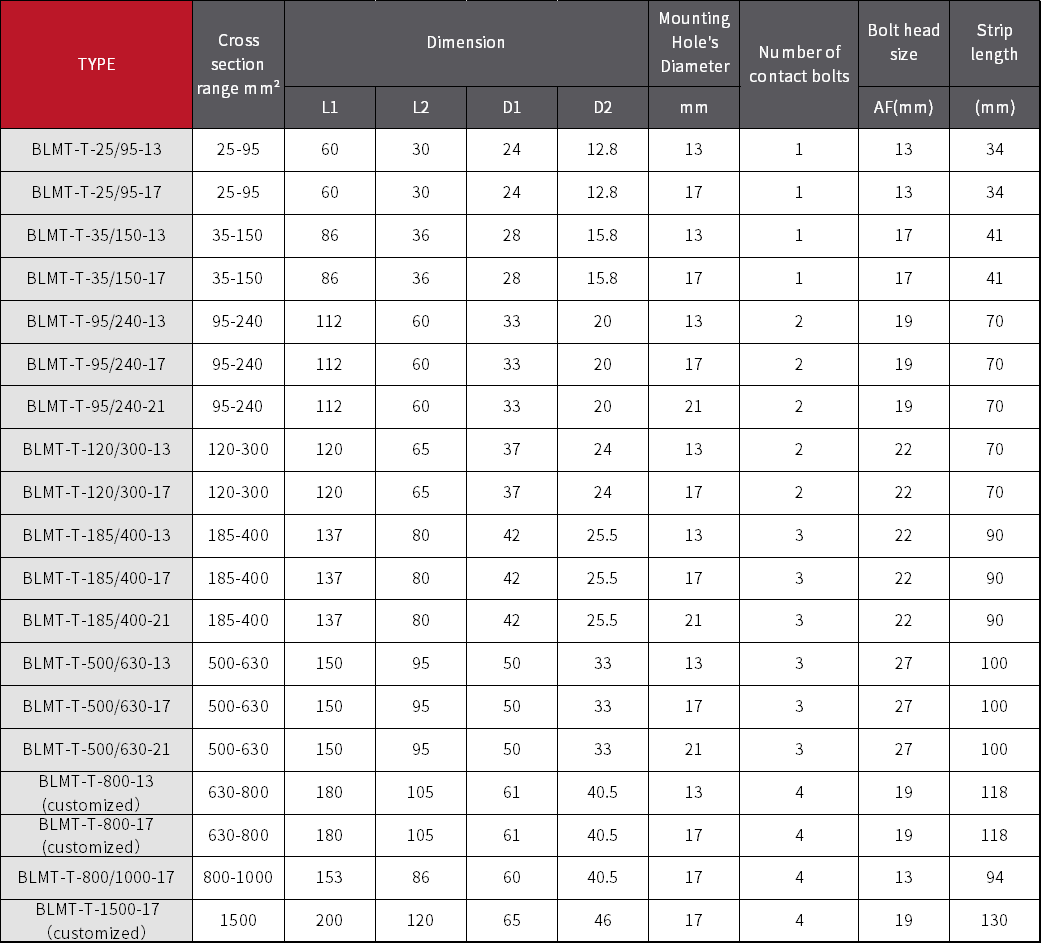

BLMT-T

简图 1BLMT

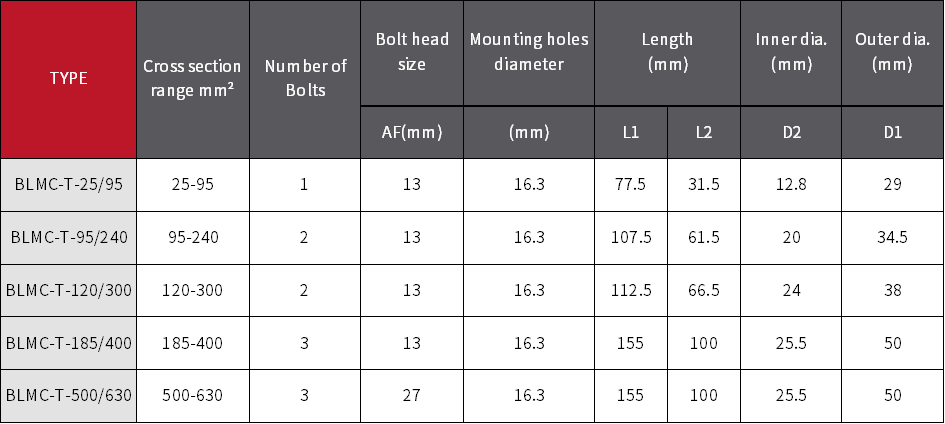

 BLMC-T

BLMC 简图
