Good Quality Shear Bolt Connector - MF mechanical connector shear bolt connector – Waxun Detail:

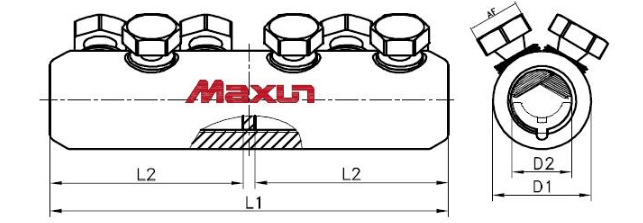

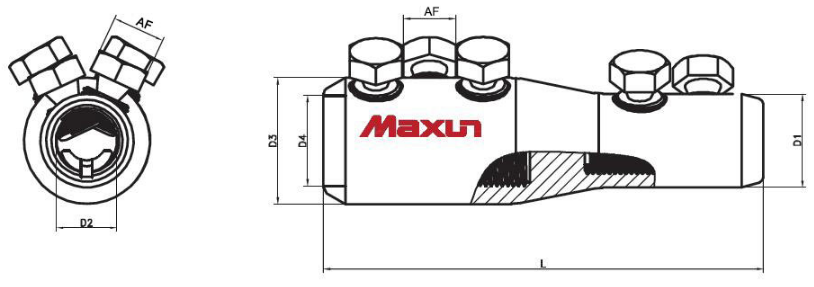

Component

Main body: special aluminum alloy material, forging process, surface tin plating treatment, plating layer> 7μm
Torque bolt: processed by CNC lathe, with higher precision
Intermediate baffle: The product is divided into oil blocking type and non-blocking type. Only the oil blocking type has a baffle.
Beading: starting from BSM-500/630, the connecting pipe does not have beading

Structural features

▪ Wide application range: suitable for wires from 10mm² to 1000mm², and can be used with almost all types of wires and materials;
▪ Pre-construction design: perfectly fit for heavy-duty cable accessories up to 42KV;
▪ Reliable electrical connection performance: use the set torque screw to press the conductor into the inner bolt of the wiring tube;
▪ Easy installation: compact design, easy to install with standard socket wrench;

Installation

No special tools are required;

Only one socket wrench is required to complete the installation;

Including proving a tab;

The graded torque-double scissors head bolts are designed to ensure reliable and secure contact;

We recommend the use of a support tool (see accessories) to prevent bending of the conductor;

Each connector head or cable lug has a separate mounting instruction.

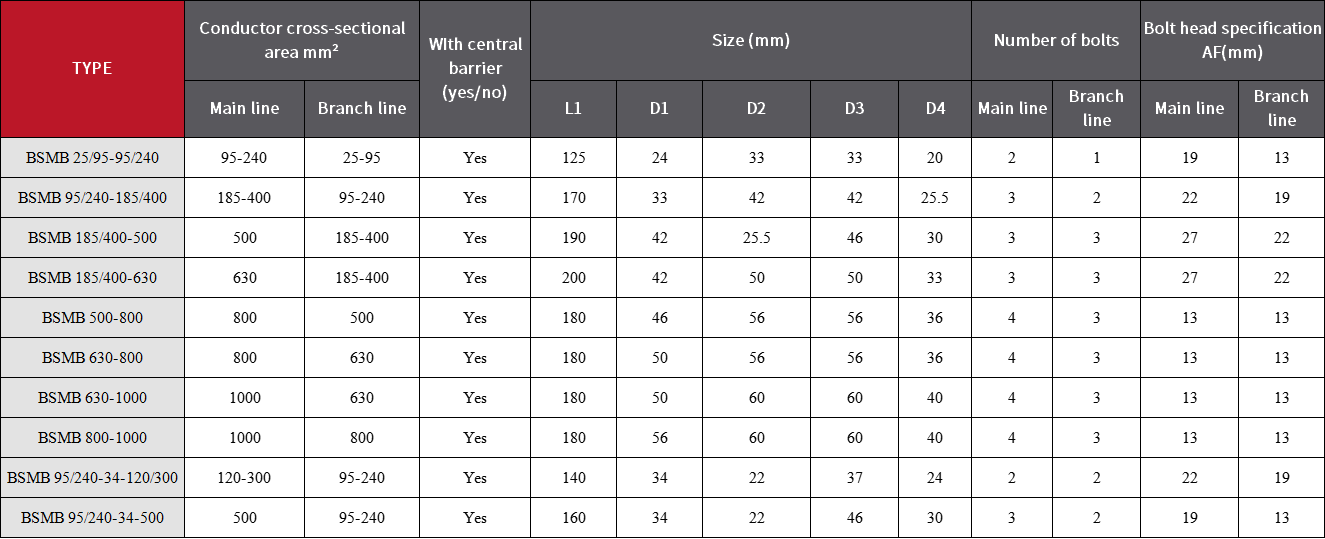

Torque connection selection table

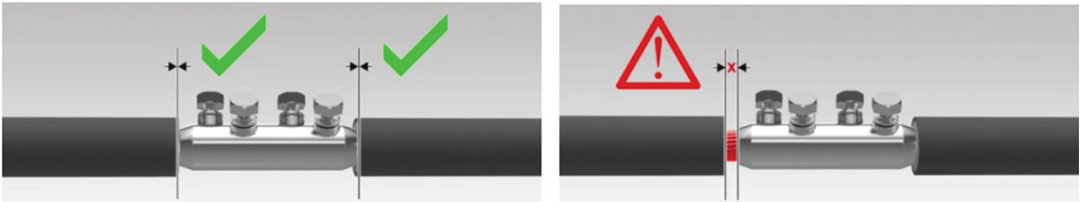

How to cut cables correctly

When installing the splice connector, be sure to insert the wire completely into the tube hole: there is no gap between the cable and the splice connector

Product detail pictures:
