Factory directly Cable Lug Copper - DT cable lug/ SC Terminals Connecting Tube – Waxun Detail:

Overview

Terminal connectors are used to connect tap conductor to power equipments (transformer, circuit breaker, circuit breaker, disconnect switch. etc ) or to all bushing of substation. Aluminum connectors are also used to connect the tap conductor of T-connector. The connectors inclede conpressive-type and bolted, both types have angle of 0°30°and 90°with the direction of tap conductor.

DT Aluminum cable lug

DT Aluminum cable lug
Type	Main size(mm）
Type	Φ	D	d	L	L1
DT-4	6.2	4.8	3.1	21.0	6.4
DT-6	6.2	5.5	3.8	24.0	9.0
DT-10	6.2	6.8	1.8	25.5	10.0
DT-16	8.2	7.5	6.5	30.5	12.0
DT-25	8.2	9.0	7.0	34.0	14.0
DT-35	10.5	10.5	8.2	38.0	14.0
DT-50	10.5	12.5	9.8	45.0	18.0
DT-70	12.5	14.5	11.5	50.0	18.6
DT-95	12.5	17.5	13.8	55.5	23.5
DT-120	12.5	19.5	15.5	63.0	24.0
DT-150	16.5	20.5	16.5	71.0	26.0
DT-185	16.5	23.5	18.8	78.0	33.0
DT-240	16.5	26.5	21.0	92.0	37.0
DT-300	16.5	30.0	24.0	102.0	39.5
DT-400	16.5	34.0	26.5	113.0	46.0
DT-500	20.5	38.0	30.0	123.0	50.0
DT-630	20.5	45.0	35.0	135.0	58.0

Cable range: 4-630mm2
SC Terminals Connecting Tube
SC(JGY) Copper Terminals Connecting Tube

Features:

JGY Copper Crimp Lug is made of with higher 99.9 percent pure copper tube T2 and coated with tin. Working temperature -55℃-150℃.

Application:
JGY Copper Crimp Lugs are suitable for the connection of copper conductors(section 1.5-1000mm2) in power cable with electronic equipment.

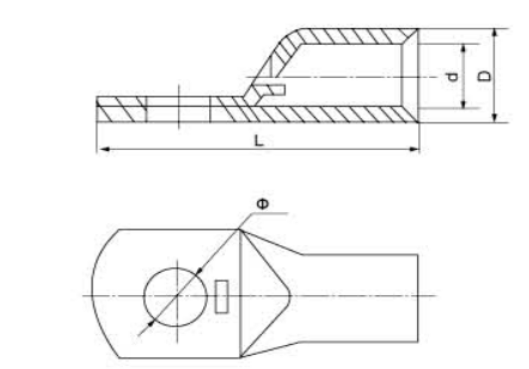

SC Tinned copper cable lug
Type	Dimension(mm）
Type	Φ	D	d	L
SC-1.5	4.2, 5.2	3.5	1.8	21.0
SC-2.5	4.2, 5.2, 6.2	4.0	2.5	21.0
SC-4	5.2, 6.2	4.8	3.1	21.0
SC-6	5.2, 6.2, 8.2	5.5	3.8	24.0
SC-10	6.2, 8.2	6.8	4.8	25.5
SC-16	6.2, 8.2, 10.5	7.5	5.5	30.5
SC-25	6.2, 8.2, 10.5	9.0	7.0	34.0
SC-35	6.2, 8.2, 10.5, 12.5	10.5	8.2	38.0
SC-50	8.2, 10.5, 12.5	12.5	9.8	45.0
SC-70	8.2, 10.5, 12.5	14.5	11.5	50.0
SC-95	10.5, 12.5	17.5	13.8	55.5
SC-120	12.5, 16.5	19.5	15.5	63.0
SC-150	12.5, 16.5	20.5	16.5	71.0
SC-185	16.5	23.5	18.8	78.0
SC-240	16.5	23.5	21.0	92.0
SC-300	16.5, 20.5	30.0	24.0	102.0
SC-400	16.5, 20.5	34.0	26.5	113.0
SC-500	16.5, 20.5	38.0	30.0	123.0
SC-630	20.5	45.0	35.0	135.0
SC-800	22.5	50.0	39.0	170.0
SC-1000	22.5	56.0	44.0	200.0

SC Tinned copper cable lug
Type	Dimension(mm）
Type	Φ	D	d	L
SC-1.5	4.2, 5.2	3.5	1.8	21.0
SC-2.5	4.2, 5.2, 6.2	4.0	2.5	21.0
SC-4	5.2, 6.2	4.8	3.1	21.0
SC-6	5.2, 6.2, 8.2	5.5	3.8	24.0
SC-10	6.2, 8.2	6.8	4.8	25.5
SC-16	6.2, 8.2, 10.5	7.5	5.5	30.5
SC-25	6.2, 8.2, 10.5	9.0	7.0	34.0
SC-35	6.2, 8.2, 10.5, 12.5	10.5	8.2	38.0
SC-50	8.2, 10.5, 12.5	12.5	9.8	45.0
SC-70	8.2, 10.5, 12.5	14.5	11.5	50.0
SC-95	10.5, 12.5	17.5	13.8	55.5
SC-120	12.5, 16.5	19.5	15.5	63.0
SC-150	12.5, 16.5	20.5	16.5	71.0
SC-185	16.5	23.5	18.8	78.0
SC-240	16.5	23.5	21.0	92.0
SC-300	16.5, 20.5	30.0	24.0	102.0
SC-400	16.5, 20.5	34.0	26.5	113.0
SC-500	16.5, 20.5	38.0	30.0	123.0
SC-630	20.5	45.0	35.0	135.0
SC-800	22.5	50.0	39.0	170.0
SC-1000	22.5	56.0	44.0	200.0

Cable range:1.5-1000mm2
