Overview

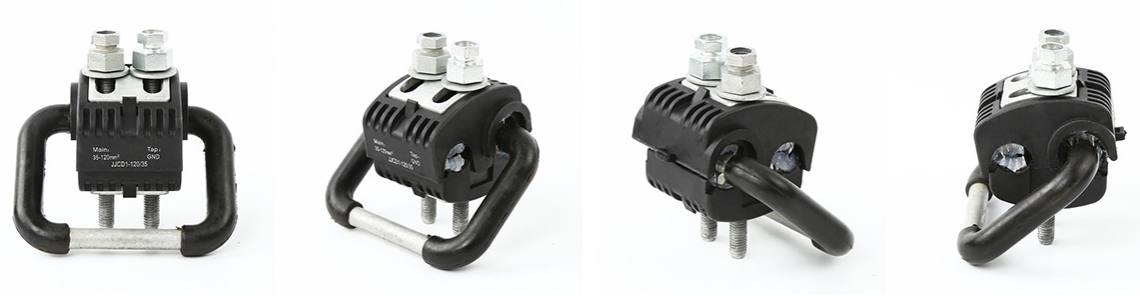

10kv two bolts insulation piercing connector with Earthing Ring for Earthing Protection and Temporary Electrical Inspection.It is suitable for majority types of ABC conductors as well as connections to service and lighting cable cores. When tightening the bolts, the teeth of the contact plates penetrate the insulation and establish a perfect contact. The bolts are tightened until the heads shear off. Tightening torque guaranteed(fuse nut). Stripping of insulation is avoided.
Service condition: 400/600V, 50/60Hz, -10°C to 55°C
Standard: IEC 61284, EN 50483, IRAM2435, NFC33 020.
Suitable for Aluminum and copper conductors
Features
• Tested for watertightness at a voltage of 6 kV for 30 min in a waterbath
• Potential free tightening bolts allow safe installations on life lines
• Bimetallic, suitable for aluminium and copper conductors
• Long neck 13 mm shear head nut ensuring reliable installations
• Components not losable, end cap attached to body
• Insulation material made of weather and UV resistant glass fibre reinforced polymer
1kV piercing grounding clamp selection table
It is suitable for 1kV overhead insulated conductor grounding protection and temporary electrical inspection.
|
model |
Equivalent model |
Applicable voltage |
Applicable wire |
Main dimensions (mm) |
Nominal current |
Number of bolts |
Puncture depth |
||
|
（kV） |
(mm²) |
A |
B |
H |
(A) |
（Pieces） |
(mm) |
||
|
WXF1-95/16 |
JJCD1-16-95 |
1 |
16-95 |
120 |
103 |
80 |
214 |
1 |
3-4 |
|
WXF1-120/35 |
JJCD1-35-120 |
1 |
35-120 |
120 |
103 |
80 |
316 |
2 |
3-4 |
|
WXF1-150/50 |
JJCD1-50-150 |
1 |
50-150 |
120 |
103 |
80 |
316 |
1 |
3-4 |
|
WXF1-185/95 |
JJCD1-95-185 |
1 |
95-185 |
125 |
103 |
110 |
276 |
1 |
3-4 |
|
WXF1-240/150 |
JJCD1-150-240 |
1 |
150-240 |
125 |
103 |
110 |
276 |
1 |
3-4 |
10kV puncture grounding clamp selection table
It is suitable for 10kV overhead insulated conductor grounding protection and temporary electrical inspection.
|
model |
Equivalent model |
Applicable voltage |
Applicable wire |
Main dimensions (mm) |
Nominal current |
Number of bolts |
Puncture depth |
||
|
（kV） |
(mm²) |
A |
B |
H |
(A) |
（Pieces） |
(mm) |
||
|
WXF10-95/25 |
小型 |
10 |
25-95 |
154 |
120 |
110 |
276 |
1 |
3-4 |
|
WXF10-95/25 |
JJCD10-95-25 |
10 |
25-95 |
144.5 |
140 |
92.5 |
257 |
2 |
4-5 |
|
WXF10-120/35 |
JJCD10-120-35 |
10 |
35-120 |
148 |
120 |
86 |
316 |
2 |
4-5 |
|
WXF10-185/95 |
JJCD10-95-185 |
10 |
95-185 |
152 |
140 |
112.5 |
476 |
2 |
4-5 |
|
WXF10-240/150 |
JJCD10-150-240 |
10 |
150-240 |
160 |
140 |
1125 |
476 |
2 |
4-5 |
10kV distribution line grounding clamp
Suitable for 10kV distribution line grounding protection
|
model |
Equivalent model |
Applicable voltage |
Applicable wire |
Main dimensions (mm) |
Nominal current |
Number of bolts |
Puncture depth |
||
|
（kV） |
(mm²) |
A |
B |
H |
(A) |
（Pieces） |
(mm) |
||
|
WXF10-95/25（Match） |
Small（Match） |
10 |
25-95 |
148 |
138 |
86 |
316 |
1 |
3-4 |
|
WXF10-95/25（Match） |
JJCD10-95-25（Match） |
10 |
25-95 |
148.5 |
140 |
98 |
257 |
2 |
4-5 |
|
WXF10-120/35（Match） |
JJCD10-120-35（Match） |
10 |
35-120 |
154 |
138 |
110 |
276 |
2 |
4-5 |
|
WXF10-185/95（Match） |
JJCD10-95-185（Match） |
10 |
95-185 |
152 |
140 |
113 |
476 |
2 |
4-5 |
|
WXF10-240/150（Match） |
JJCD10-150-240（Match） |
10 |
150-240 |
160 |
140 |
113 |
476 |
2 |
4-5 |
