Overview
Terminal connectors are used to connect tap conductor to power equipments (transformer, circuit breaker, circuit breaker, disconnect switch. etc ) or to all bushing of substation. Aluminum connectors are also used to connect the tap conductor of T-connector. The connectors inclede conpressive-type and bolted, both types have angle of 0°30°and 90°with the direction of tap conductor.
DT Aluminum cable lug

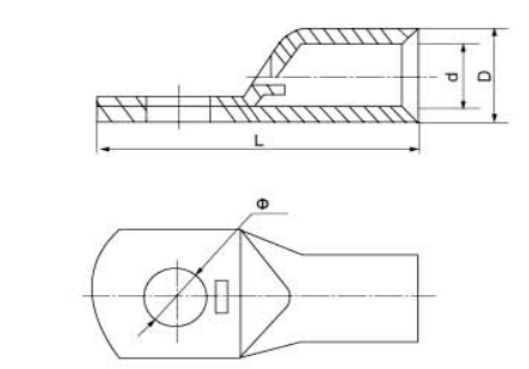

| DT Aluminum cable lug | |||||
| Type | Main size(mm） | ||||
| Φ | D | d | L | L1 | |
| DT-4 | 6.2 | 4.8 | 3.1 | 21.0 | 6.4 |
| DT-6 | 6.2 | 5.5 | 3.8 | 24.0 | 9.0 |
| DT-10 | 6.2 | 6.8 | 1.8 | 25.5 | 10.0 |
| DT-16 | 8.2 | 7.5 | 6.5 | 30.5 | 12.0 |
| DT-25 | 8.2 | 9.0 | 7.0 | 34.0 | 14.0 |
| DT-35 | 10.5 | 10.5 | 8.2 | 38.0 | 14.0 |
| DT-50 | 10.5 | 12.5 | 9.8 | 45.0 | 18.0 |
| DT-70 | 12.5 | 14.5 | 11.5 | 50.0 | 18.6 |
| DT-95 | 12.5 | 17.5 | 13.8 | 55.5 | 23.5 |
| DT-120 | 12.5 | 19.5 | 15.5 | 63.0 | 24.0 |
| DT-150 | 16.5 | 20.5 | 16.5 | 71.0 | 26.0 |
| DT-185 | 16.5 | 23.5 | 18.8 | 78.0 | 33.0 |
| DT-240 | 16.5 | 26.5 | 21.0 | 92.0 | 37.0 |
| DT-300 | 16.5 | 30.0 | 24.0 | 102.0 | 39.5 |
| DT-400 | 16.5 | 34.0 | 26.5 | 113.0 | 46.0 |
| DT-500 | 20.5 | 38.0 | 30.0 | 123.0 | 50.0 |
| DT-630 | 20.5 | 45.0 | 35.0 | 135.0 | 58.0 |
Cable range: 4-630mm2
SC Terminals Connecting Tube
SC(JGY) Copper Terminals Connecting Tube
Features:
JGY Copper Crimp Lug is made of with higher 99.9 percent pure copper tube T2 and coated with tin. Working temperature -55℃-150℃.
Application:
JGY Copper Crimp Lugs are suitable for the connection of copper conductors(section 1.5-1000mm2) in power cable with electronic equipment.
|
SC Tinned copper cable lug |
||||
|
Type |
Dimension(mm） |
|||
|
Φ |
D |
d |
L |
|
|
SC-1.5 |
4.2, 5.2 |
3.5 |
1.8 |
21.0 |
|
SC-2.5 |
4.2, 5.2, 6.2 |
4.0 |
2.5 |
21.0 |
|
SC-4 |
5.2, 6.2 |
4.8 |
3.1 |
21.0 |
|
SC-6 |
5.2, 6.2, 8.2 |
5.5 |
3.8 |
24.0 |
|
SC-10 |
6.2, 8.2 |
6.8 |
4.8 |
25.5 |
|
SC-16 |
6.2, 8.2, 10.5 |
7.5 |
5.5 |
30.5 |
|
SC-25 |
6.2, 8.2, 10.5 |
9.0 |
7.0 |
34.0 |
|
SC-35 |
6.2, 8.2, 10.5, 12.5 |
10.5 |
8.2 |
38.0 |
|
SC-50 |
8.2, 10.5, 12.5 |
12.5 |
9.8 |
45.0 |
|
SC-70 |
8.2, 10.5, 12.5 |
14.5 |
11.5 |
50.0 |
|
SC-95 |
10.5, 12.5 |
17.5 |
13.8 |
55.5 |
|
SC-120 |
12.5, 16.5 |
19.5 |
15.5 |
63.0 |
|
SC-150 |
12.5, 16.5 |
20.5 |
16.5 |
71.0 |
|
SC-185 |
16.5 |
23.5 |
18.8 |
78.0 |
|
SC-240 |
16.5 |
23.5 |
21.0 |
92.0 |
|
SC-300 |
16.5, 20.5 |
30.0 |
24.0 |
102.0 |
|
SC-400 |
16.5, 20.5 |
34.0 |
26.5 |
113.0 |
|
SC-500 |
16.5, 20.5 |
38.0 |
30.0 |
123.0 |
|
SC-630 |
20.5 |
45.0 |
35.0 |
135.0 |
|
SC-800 |
22.5 |
50.0 |
39.0 |
170.0 |
|
SC-1000 |
22.5 |
56.0 |
44.0 |
200.0 |
|
SC Tinned copper cable lug |
||||
| Type | Dimension(mm） | |||
| Φ | D | d | L | |
| SC-1.5 | 4.2, 5.2 | 3.5 | 1.8 | 21.0 |
| SC-2.5 | 4.2, 5.2, 6.2 | 4.0 | 2.5 | 21.0 |
| SC-4 | 5.2, 6.2 | 4.8 | 3.1 | 21.0 |
| SC-6 | 5.2, 6.2, 8.2 | 5.5 | 3.8 | 24.0 |
| SC-10 | 6.2, 8.2 | 6.8 | 4.8 | 25.5 |
| SC-16 | 6.2, 8.2, 10.5 | 7.5 | 5.5 | 30.5 |
| SC-25 | 6.2, 8.2, 10.5 | 9.0 | 7.0 | 34.0 |
| SC-35 | 6.2, 8.2, 10.5, 12.5 | 10.5 | 8.2 | 38.0 |
| SC-50 | 8.2, 10.5, 12.5 | 12.5 | 9.8 | 45.0 |
| SC-70 | 8.2, 10.5, 12.5 | 14.5 | 11.5 | 50.0 |
| SC-95 | 10.5, 12.5 | 17.5 | 13.8 | 55.5 |
| SC-120 | 12.5, 16.5 | 19.5 | 15.5 | 63.0 |
| SC-150 | 12.5, 16.5 | 20.5 | 16.5 | 71.0 |
| SC-185 | 16.5 | 23.5 | 18.8 | 78.0 |
| SC-240 | 16.5 | 23.5 | 21.0 | 92.0 |
| SC-300 | 16.5, 20.5 | 30.0 | 24.0 | 102.0 |
| SC-400 | 16.5, 20.5 | 34.0 | 26.5 | 113.0 |
| SC-500 | 16.5, 20.5 | 38.0 | 30.0 | 123.0 |
| SC-630 | 20.5 | 45.0 | 35.0 | 135.0 |
| SC-800 | 22.5 | 50.0 | 39.0 | 170.0 |
| SC-1000 | 22.5 | 56.0 | 44.0 | 200.0 |
Cable range:1.5-1000mm2
