Overview

Torque terminals are specially designed to handle the connection between wires and equipment.
The unique shear bolt mechanism provides a consistent and reliable stopping point. Compared with traditional crimping hooks, it is super fast and super efficient, and ensures a consistent predetermined shear moment and compression force.
The torsion terminal is made of tin-plated aluminum alloy and has an inner groove-shaped wall surface.
The notable feature is that it can save labor and enhance the electrical and mechanical performance.
▪ Material: tinned aluminum alloy
▪ Working temperature: -55℃ to155℃ -67 ℉ to 311 ℉
▪ Standard: GB/T 2314 IEC 61238-1

Features and advantages

▪ Wide range of applications
▪ Compact design
▪ It can be used with almost all types of conductors and materials
▪ Constant torque shearing head nut guarantees good electrical contact performance
▪ It can be easily installed with a standard socket wrench
▪ Pre-engineered design for perfect installation on medium voltage cables up to 42kV
▪ Good over-current and anti-short-term current impact capability

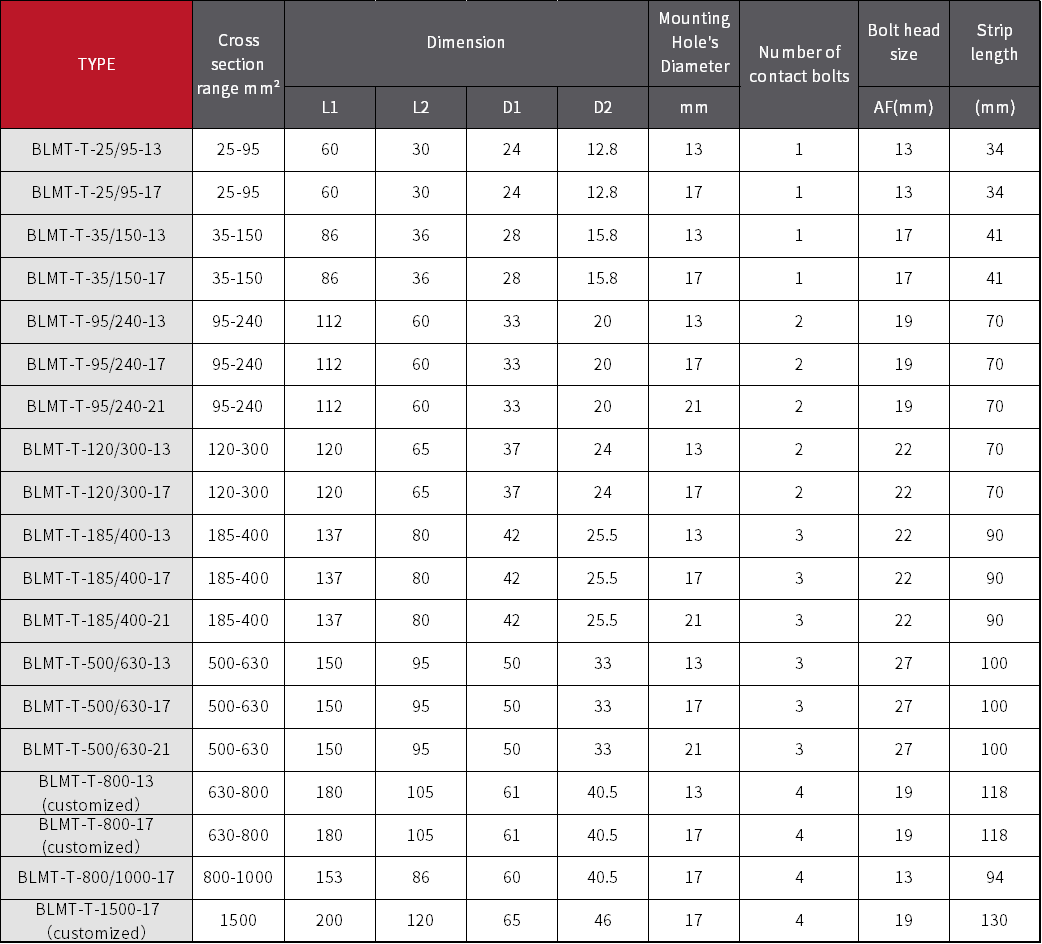

BLMT-T

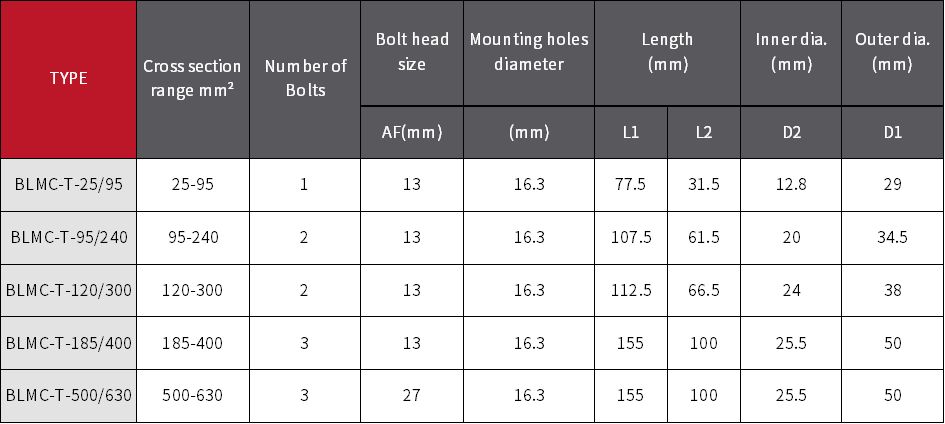

 BLMC-T
